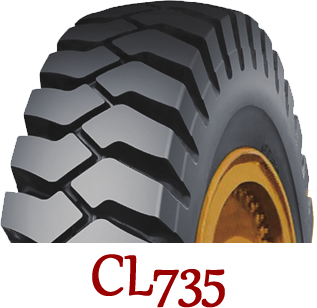

Model: CL735
Class: Dump Truck
Highlights:
- 20-25
- N/A
- N/A
Description:
- Dump Truck
| Size | Ply Rate | Type | Pattern | Tread Depth 32nd |
TRA Code | Standard Rim | Section Width Inch |
Overall Diameter Inch |
Max Load (S/D) lbs |
Cold Inflation Pressure PSI |
|---|---|---|---|---|---|---|---|---|---|---|
| 10.00-20 | 18 | TT | CL735 | 32.8 | E-3 | 7.5 | 10.94 | 42.24 | 12004 | 129 |
| 11.00-20 | 20 | TT | CL735 | 37.8 | E-3 | 8 | 11.54 | 43.5 | 12203 | 131 |
| 12.00-20 | 20 | TT | CL735 | 37.8 | E-3 | 8.5 | 12.4 | 45.08 | 13966 | 131 |
| 12.00-24 | 24 | TT | CL735 | 37.8 | E-3+ | 8.5 | 12.4 | 50.2 | 16535 | 141 |
| 14.0024 | 24 | TT | CL735 | 40.3 | E-3 | 10 | 14.76 | 53.94 | 18519 | 123 |
| 14.0024 | 28 | TT | CL735 | 40.3 | E-3 | 10 | 14.76 | 53.94 | 22046 | 134 |
| 13.0025 | 28 | TT | CL735 | 40.3 | E-3 | 8.5 | 13.78 | 51.18 | 20679 | 152 |
| 13.0025 | 36 | TT | CL735 | 40.3 | E-3 | 8.5 | 13.78 | 51.18 | 23424 | 189 |
| 14.00-25 | 28 | TT | CL735 | 40.3 | E-3 | 12.00/2.0 | 14.76 | 53.94 | 22046 | 134 |
| 14.00-25 | 36 | TT | CL735 | 40.3 | E-3 | 12.00/2.0 | 14.76 | 53.94 | 25673 | 174 |
| 14.00-25 | 28 | TT | CL735 | 40.3 | E-3 | 12.00/2.0 | 14.76 | 53.94 | 22046 | 134 |
| 18.00-25 | 32 | TT/TL | CL735 | 47.9 | E-3 | 13.00/25 | 19.49 | 63.58 | 19290 | 83 |
| 18.00-25 | 32 | TT/TL | CL735 | 47.9 | L-3 | 13.00/25 | 19.49 | 63.58 | 33069 | 109 |
| 18.00-25 | 36 | TT/TL | CL735 | 47.9 | E-3 | 13.00/25 | 19.49 | 63.58 | 20393 | 91 |
| 18.00-25 | 36 | TT/TL | CL735 | 47.9 | L-3 | 13.00/25 | 19.49 | 63.58 | 35274 | 123 |
