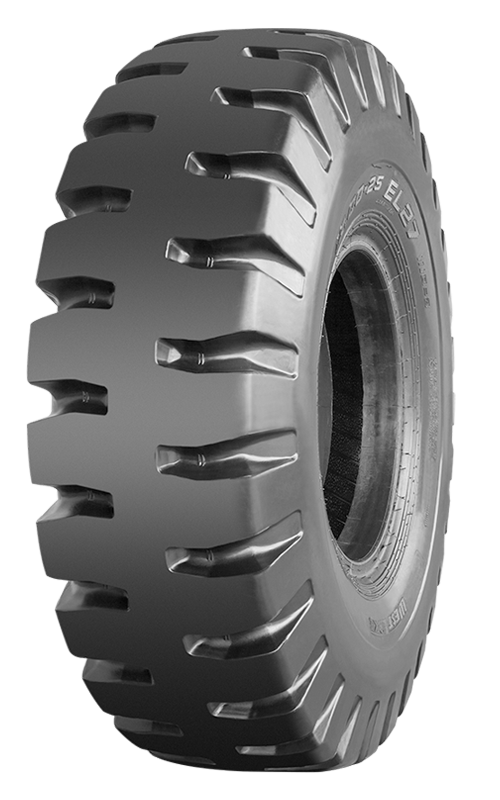

Model: EL27
Class: Loader/Earthmover/Grader
Highlights:
- Loader
- Earthmover
- Grader
Description:
- Industrial Port Service
| Size | Ply Rate | Type | Pattern | Tread Depth 32nd |
TRA Code | Standard Rim | Section Width Inch |
Overall Diameter Inch |
Max Load (S/D) lbs |
Cold Inflation Pressure PSI |
|---|---|---|---|---|---|---|---|---|---|---|
| 23.5-25 | 20 | TL | EL27 | 44.1 | L-3 | 19.5/2.5 | 23.42 | 63.58 | 24030 | 54 |
| 23.5-25 | 20 | TL | EL27 | 44.1 | E-3 | 19.5/2.5 | 23.42 | 63.58 | 16094 | 44 |
| 26.5-25 | 28 | TL | EL27 | 67.8 | L-4 | 22.00/3.0 | 26.57 | 68.9 | 34172 | 69 |
| 26.5-25 | 28 | TL | EL27 | 67.8 | E-4 | 22.00/3.0 | 26.57 | 68.9 | 22046 | 51 |
| 35/65-33 | 36 | TL | EL27 | 126 | L-5 | 28.00/3.5 | 35.04 | 81.69 | 52029 | 76 |
| 35/65-33 | 48 | TL | EL27 | 126 | L-5 | 28.00/3.5 | 35.04 | 81.69 | 38580 (50 km/h | 76 (50 km/h) |
| 16.00-25 | 32 | TL | EL27 | 40.3 | N/A | 11.25/2.0 | 16.92 | 58.86 | 39904 | 145 |
| 16.00-25 | 36 | TL | EL27 | 40.3 | N/A | 11.25/2.0 | 16.92 | 58.86 | 43431 | 145 |
| 18.00-25 | 40 | TL | EL27 | 54.2 | N/A | 13.00/2.5 | 20.07 | 63.39 | 54234 | 165 |
| 18.00-25 | 44 | TL | EL27 | 54.2 | N/A | 13.00/2.5 | 20.07 | 63.39 | 57982 | 183 |
| 18.00-25 | 48 | TL | EL27 | 54.2 | N/A | 13.00/2.5 | 20.07 | 63.39 | 60848 | 183 |
| 21.00-25 | 40 | TL | EL27 | 47.9 | N/A | 15.00/3.5 | 22.63 | 68.9 | 64595 | 145 |
| 21.00-35 | 40 | TL | EL27 | 47.9 | N/A | 15.00/3.0 | 22.44 | 78.94 | 77669 | 145 |
