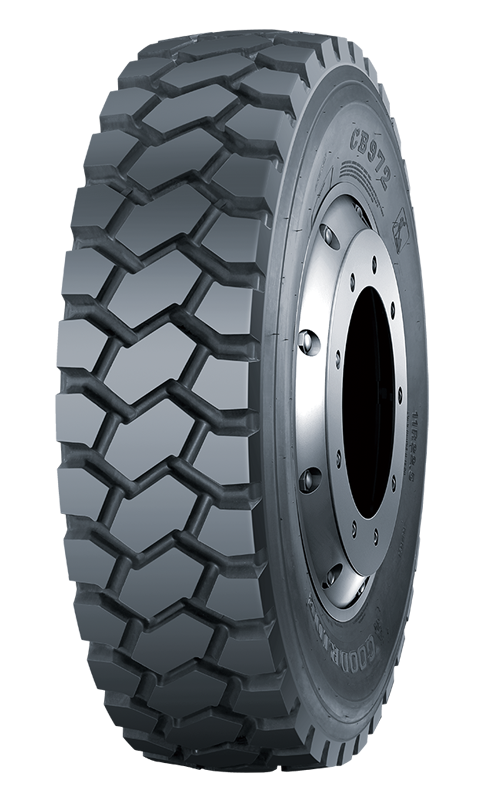

Model: CB972
Class: Mixed Services
Highlights:
- Mixed Services (Mining)
Description:
- Aggressive lug design with large blocks at tread center provides excellent traction and braking on rough
roads with mud or gravel and is self-cleaning for ease of maintenance.
- Applicable in mining, logging, construction or rock and quarry operations with some very short on high-way use possible.
- Special tread compounds resist chipping and chunking in rugged off-road conditions.
| Size | Ply Rate | Type | Pattern | Tread Depth 32nd |
Service Index | Standard Rim | Section Width Inch |
Overall Diameter Inch |
Max Load (S/D) lbs |
Cold Inflation Pressure PSI |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.25R16 | 16 | TT | CB972 | 23.0 | 128/124J | 6.50H | 9.00 | 34.00 | 3970/3525 | 112 |
| 9.00R20 | 16 | CB972 | 28.0 | 144/142F | 7 | 10.00 | 40.00 | 6175/5840 | 130 | |
| 10.00R20 | 16 | TT | CB972 | 30.0 | 146/143F | 7.50 | 11.00 | 42.00 | 6610/6005 | 120 |
| 11.00R20 | 18 | CB972 | 30.0 | 152/149F | 8 | 12.00 | 43.00 | 7825/7165 | 135 | |
| 12.00R20 | 18 | TT | CB972 | 32.0 | 154/151F | 8.50 | 12.00 | 45.00 | 8270/7610 | 120 |
| 11R22.5 | 14 | TL | CB972 | 29.0 | 144/142G | 8.25 | 11.00 | 42.00 | 6175/5840 | 105 |
| 11R22.5 | 16 | TL | CB972 | 29.0 | 148/145J | 8.25 | 11.00 | 42.00 | 6940/6390 | 123 |
| 12R22.5 | 18 | TL | CB972 | 31.0 | 152/149F | 9.00 | 12.00 | 43.00 | 7830/7160 | 135 |
| 275/70R22.5 | 16 | TL | CB972 | 25.0 | 148/145F | 8.25 | 11.00 | 38.00 | 6940/6395 | 130 |
| 295/80R22.5 | 18 | TL | CB972 | 26.0 | 152/149J | 9.00 | 12.00 | 41.00 | 7830/7160 | 131 |
| 11R24.5 | 14 | TL | CB972 | 29.0 | 146/143F | 8.25 | 11.00 | 44.00 | 6610/6005 | 105 |
| 11R24.5 | 16 | TL | CB972 | 29.0 | 149/146F | 8.25 | 11.00 | 44.00 | 7160/6610 | 120 |
